Embention is a leading developer of autopilots and high-performance components for UAVs (unmanned aerial vehicles) and unmanned systems. Our aviation-grade solutions are designed for the most challenging of professional applications, including UAM (urban air mobility) and eVTOL platforms.
Autopilot & Vehicle Control Systems
Autopilots for flight control systems & UAV flight control
Veronte Autopilot 1x
Veronte Autopilot 4x
We provide miniature aviation standards-compliant autopilots for unmanned and autonomous vehicle platforms, such as UAVs, UGVs, USVs and eVTOLs.
In addition, we have developed hardware- and software-in-the loop simulators for efficient testing and development.
Learn more: UAV Autopilot Systems >>
Ground Control Stations (GCS)
Rugged ground stations for UAVs and drones
Rugged ground control stations (GCS) for Veronte autopilot-enabled UAVs and unmanned vehicles are available in tablet or laptop versions. Cross-platform software provides intuitive mission planning and flight monitoring.
MCS Ground Control Station
TCS Tablet
PCS Telescopic Mast
Learn more: UAV Ground Stations >>
Drone Gimbal Cameras
Gyro-stabilized, dual-camera gimbals
Our gyro-stabilized drone camera gimbals feature dual visible and thermal capabilities, with HD and FLIR IR cameras. Providing a high degree of accuracy and superior image quality, our gimbals incorporate integrated encoder sensors.
Veronte Gimbal 10Z
Veronte Gimbal 30Z
Product comparison:
| Veronte Gimbal 10Z | Veronte Gimbal 30Z | |
| Zoom | 10x Optical (EO) | 30x Optical (EO) |
| Horizontal field of view | 6.9º to 58.2º (EO) / 16º (IR) | 2.3º to 63.7º (EO) | 18º (IR) |
| Elevation | -80º to 260º | 360° continuous |
| Image size | 720p – 30 FPS (EO) /320 x 256 9Hz (IR) | 1920x1080p (EO) | 640×512 (IR) |
| Weight | 980g | 1700g |
| Dimensions | 131x120x110mm | 207x148x148mm |
Learn more: Drone Gimbal Cameras >>
eVTOL Electronic Speed Controllers
ESC motor controllers for large drones and UAM
Our electronic speed controllers (ESCs) have been specifically designed for eVTOL and UAM applications and have been developed according to DO178C and DO254 certification standards for the utmost in safety and reliability.
Learn more: eVTOL Electronic Speed Controllers >>
Tracking Antenna Systems
Long-range UAV and drone tracking antennas
Our high-performance drone tracking antenna system provides long-range telemetry and video communications for moving vehicles (UAVs, UGVs, USVs). Embedded sensors and encoders ensure precision pan & tilt positioning accuracy.
The Veronte Tracker 26NM features integrated directional and omnidirectional antennas, and can be equipped with a wide range of directional antennas, including yagi, parabolic grid and patch antennas.
The modular system can also be fitted with custom radio modules and amplifiers, making it compatible with all possible operating frequencies.
Learn more: UAV Tracking Antennas >>
Veronte Autopilot Expander Modules
We provide expansion modules for the Veronte drone autopilot system that allow USB sticks and additional I/O capabilities to be installed within the ecosystem.
Learn more: Veronte Autopilot Expander Modules >>
Accessories
A wide range of accessories are available that allow users to expand the utility of the Veronte ecosystem, including antennas, extension cables and harnesses, motor controllers and power supplies.
1.8GHz Short Antenna
SSMA to SMA IP67 Antenna Extension Cable
SMA Extension Cable

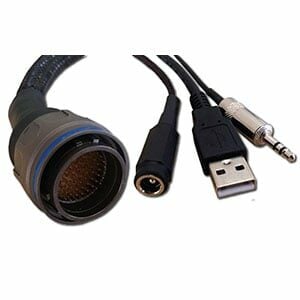

Autopilot Harness
Learn more: Accessories >>
