CONTROP is a leading developer of electro-optical and infrared thermal imaging targeting and tracking systems for surveillance, security and defense.
Our state-of-the-art gyro-stabilized EO/IR gimbal payloads and sensor packages are used for UAVs (unmanned aerial vehicles), drones and unmanned vehicles (including USVs and UGVs) as well as fixed-site installations. They have been proven worldwide for a broad range of applications including surveillance, defense, homeland security, coastal protection, security of sensitive sites, counter-drone protection and more.
Aerial Gyro-Stabilized EO / IR Camera Payloads
CONTROP’s gyro-stabilized EO / IR Camera Payloads are ideal for a wide range of unmanned aerial platforms, including multirotor, fixed-wing and hybrid UAVs, as well as aerostats and balloons. With options for short, medium and long range missions and a variety of payload weights, they provide an excellent solution for any aerial surveillance mission requirements.

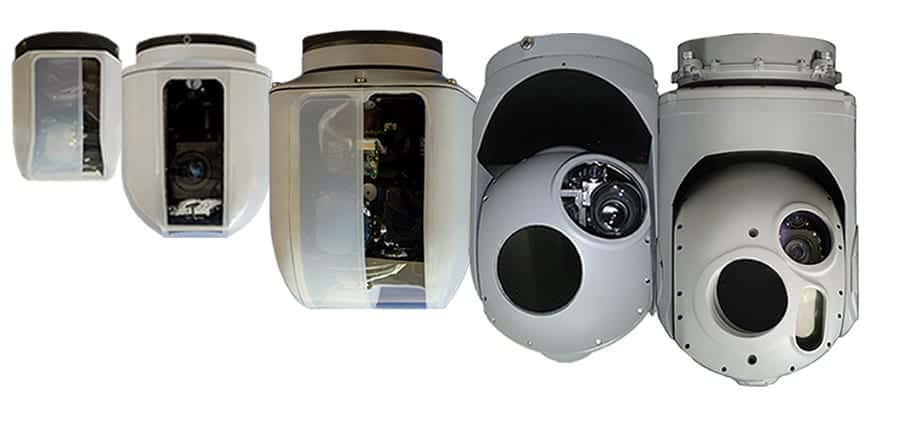

STAMP Miniature EO/IR Camera Payloads for UAVs
The STAMP family of lightweight miniature EO/IR payloads are designed for short and medium range surveillance and targeting missions, and are ideal for integration into UGVs, aerostats and small Group 1 and 2 VTOL and fixed-wing UAVs. The two-axis gyro-stabilized camera gimbals are available in a wide variety of configurations for day and night operational requirements.
With minimal weight and easy mounting, STAMP camera payloads provide high-performance Intelligence, Surveillance, Reconnaissance and Targeting (ISRT) for special operations, maritime patrol, law enforcement and other security and defense applications.

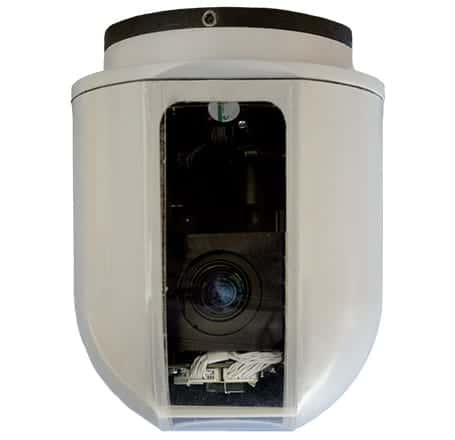

D-STAMP-HD
Daylight HD High Definition Stabilized Miniature UAV Payload
The D-STAMP-HD is a high definition stabilized payload for miniature UAVs that is designed for daytime tactical “over-the-hill” operations. The payload is built around a CMOS 1/3″ image sensor with x9 / x20 continuous optical zoom.

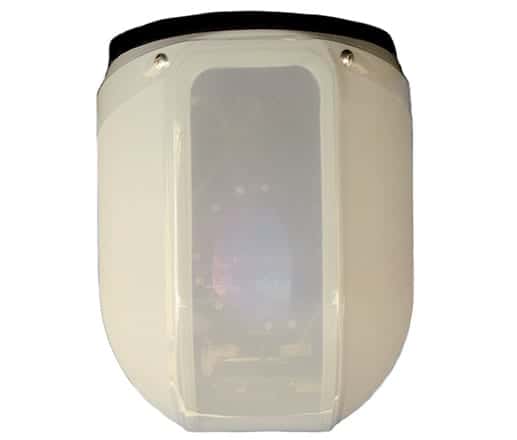

U-STAMP
Uncooled IR Stabilized Miniature UAV Payload
The U-STAMP series of uncooled IR payloads for miniature UAVs are designed for nighttime tactical “over-the-hill” operations. Three variants are available – Single FOV Camera, x4 Continuous Optical Zoom Camera and Dual Field-of-View Camera.

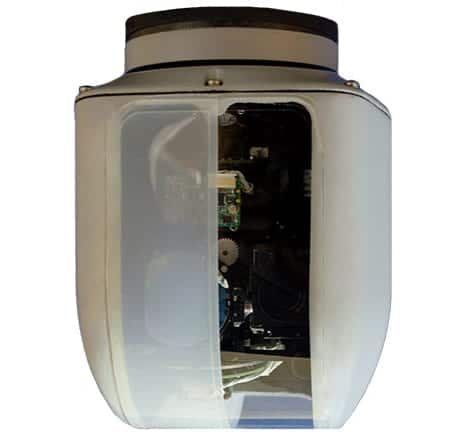

M-STAMP
Multi Sensor Stabilized Miniature UAV Payload
The M-STAMP is a multi-sensor payload for miniature UAVs that enables tactical reconnaissance missions both during the day and at night. It carries both an uncooled IR sensor with x4 continuous optical zoom, and a CCD sensor with x10 continuous optical zoom.

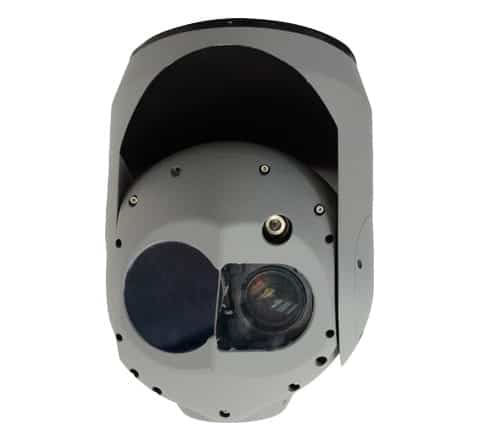

T-STAMP-XR
Small Gyro-stabilized Dual Sensor Camera UAV Payload
The T-STAMP-XR is a dual-sensor EO/IR payload for small UAVs that is designed for tactical ISRT (Intelligence, Surveillance, Reconnaissance and Targeting) missions both during the day and at night.
STAMP EO/IR Camera Comparison
 |
 |
 |
 |
|
| Model | D-STAMP-HD | U-STAMP | M-STAMP | T-STAMP-XR |
| Sensors | CMOS 1/3″ x9 / x20 Continuous Optical Zoom | Uncooled Infrared IR Single FOV Camera | Uncooled IR x4 Continuous Optical Zoom and CCD x10 Continuous Optical Zoom | – |
| Diameter | 130mm | 140mm | 152mm | 178mm |
| Weight | 850g | 1.25kg | 1.3kg | 3.5kg |
| Range | 6km | 2.7km | 2.7km | 12km |
| Operation | Day | Night | Day/Night | Day/Night |

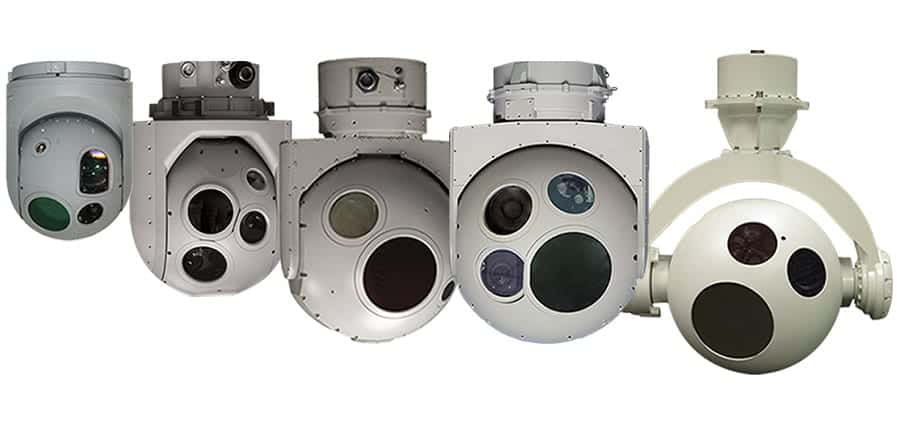

iSky Medium-Long Range EO/IR Camera Payloads
The iSky series of stabilized EO / IR payloads are designed for medium (3-5km) and long (7-10km) range missions, and can be installed on a wide range of unmanned platforms, including fixed-wing UAVs, unmanned helicopters, aerostats, UGVs and USVs.
With a variety of daytime and nighttime sensor options, automatic video tracking and powerful integrated image processing capabilities, the iSky series provides superior quality imagery for surveillance, observation, ISR and more.
iSky-20HD
Day/Night HD Observation System for UAVs
The iSky-20HD is a compact high definition day/night 3-axis payload specially configured for fixed-wing UAVs and unmanned helicopter platforms. The flexible observation system allows mounting of a wide array of user-defined sensors and cameras, and features built-in automatic target tracking and image enhancement algorithms.

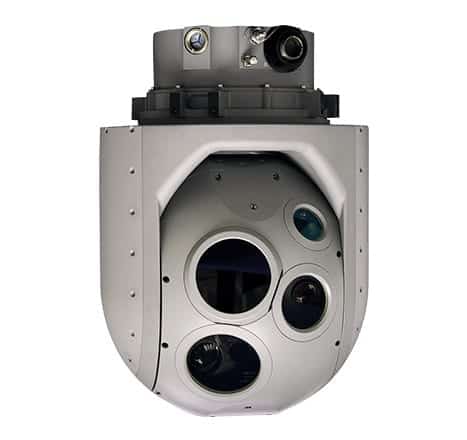

iSky-30HD
Multi Sensor HD Observation Payload System for UAVs
The iSky-30HD is a lightweight, compact high definition day/night 3-axis payload for fixed-wing and multirotor UAVs as well as maritime platforms. Integrated sensors include a 37.5x continuous zoom thermal imaging camera with 250mm focal length, a 50x continuous zoom high sensitivity colour HD day camera, and optional eyesafe laser range finder, laser illuminator and laser pointer.

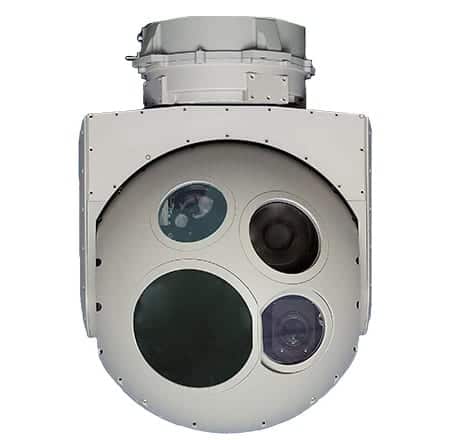

iSky-50HD
High Performance HD Surveillance UAV Payload System
The iSky-50HD is our most advanced HD payload for day and night surveillance missions, providing superior observation capabilities at very long acquisition ranges. The fully stabilized four-axis system combines a 36x continuous zoom thermal imaging camera with 720mm focal length, a full HD zoom day camera, and a full HD daylight or SD SWIR spotter channel.
iSky Medium-Long Range EO/IR Camera Comparison
 |
 |
 |
|
| Model | iSky-20HD | iSky-30HD | iSky-50HD |
| Sensors | Continuous Zoom Thermal Imaging and Continuous Zoom Colour HD Day Camera | 37.5x Continuous Zoom Thermal Imaging and 50x Continuous Zoom Colour HD Day Camera | 36x Continuous Zoom Thermal Imaging and Full HD Zoom Camera, and Full HD Daylight or SD SWIR Spotter Channel |
| Diameter | 240mm | 305mm | 354mm |
| Weight | 10.7kg | 21kg | 29kg |
| Range | 15km | 18km | 32km |
| Operation | Day/Night | Day/Night | Day/Night |
Land Scanning & Observation Systems
CONTROP’s Land Surveillance Camera Systems provide observation and panoramic scanning for defense and homeland security, with long-range night vision and automatic moving target detection capabilities. They are ideal for counter-UAS operations and small vessel detection to protect borders, ports, airports, coastlines and more.

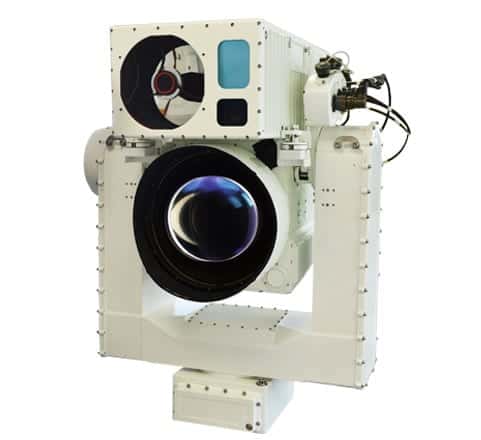

SPEED-ER
Long Range Day & Night Stabilized Surveillance System
The SPEED-ER is a modular gyro-stabilized surveillance system designed for extended long-range day and night operation at fixed sites. The 4-axis system features advanced video enhancement algorithms and incorporates the following state-of-the-art sensors:
- Cooled InfraRed Thermal Imaging Camera (MWIR) with a Continuous Optical Zoom Lens
- SWIR Camera with a Continuous Optical Zoom Lens
- Wide FOV CCD Camera
- Extra narrow FOV CCD camera
- Laser Range Finder
- Laser Pointer for target marking
The SPEED-ER can be easily integrated with complimentary systems to create a full defense and homeland security (HLS) solution. It is ideal for land-based detection, recognition and identification applications under a diverse range of conditions, including border and coastline surveillance, port security, vessel traffic surveillance (VTS) and long-range air defense and counter-UAS operations.

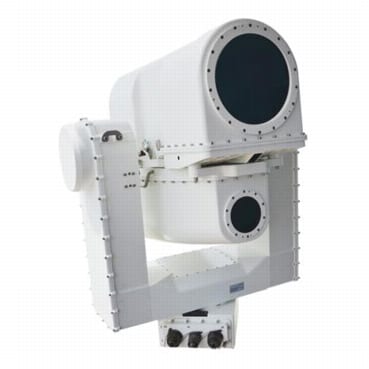

TORNADO-ER
Advanced Infrared Scanning System
The TORNADO-ER is an advanced infrared thermal imaging and scanning system for fully automatic detection and acquisition of both land and maritime targets. Using state-of-the-art sensors and advanced video processing algorithms, it can be easily integrated with complementary systems to create a full defense and homeland security (HLS) solution.
With panoramic imaging capabilities and a range of up to 12km, the TORNADO-ER is ideal for coastal and maritime wide area surveillance applications, including port security, force protection, counter-UAS and anti-piracy.
Ground Vehicle Observation and RWS Sights

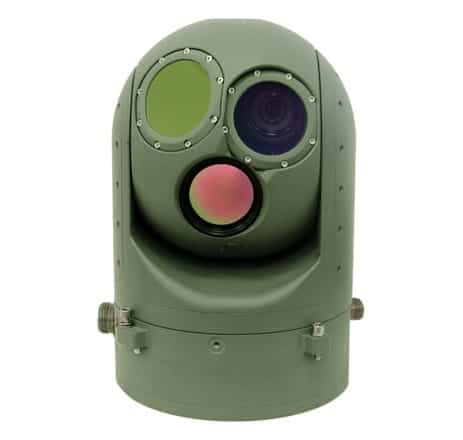

SIGHT-HD
Gyro-stabilised target acquisition for armoured vehicles and remote weapons stations
The SIGHT-HD is a gyro-stabilized medium-range targeting sight designed for ground vehicles as well as land- and naval-based remote weapons stations. Its EO/IR sensor package and advanced image processing facilitate rapid target assessment and engagement, day or night, even under severe weather conditions.
With superior line-of-sight retention and a range of up to 15km, the SIGHT-HD is ideal for remote weapons targeting as well as ISR and force protection applications and can be installed on a wide variety of fixed-site stations as well as UGVs, USVs and other mobile platforms.
Unmanned Systems Applications
Anti-Drone Defense & Protection
CONTROP’s surveillance systems are an ideal solution to the growing threat of hostile UAVs. Using state-of-the-art sensors to detect and track targets, our counter-UAS systems can be installed on fixed or mobile platforms to protect airports, harbours, prisons, military bases and critical infrastructure.
ISR & Targeting
Our world-leading, operationally-proven ISRT systems use sophisticated EO/IR sensors to provide vital target acquisition information and relay this information for further integration, processing and management. High-performance ISR system capabilities include SWIR and night vision technology, thermal imaging, and real-time video tracking, image enhancement and image processing.
Maritime Patrol
CONTROP’s scanning systems provide security and surveillance capabilities for maritime patrolling platforms such as USVs. Solutions are available for short, medium and long-range capabilities, and for tracking targets from single swimmers all the way up to large naval vessels.
Border Surveillance
Our scanning and observation systems provide an ideal solution for the 24/7 requirements of border surveillance and protection. They are utilised worldwide in a variety of terrains, including mountains, shorelines, seas and urban areas, to detect, track and recognize unauthorized intruders.
